PLC - Portable Lens Projector

C0100008

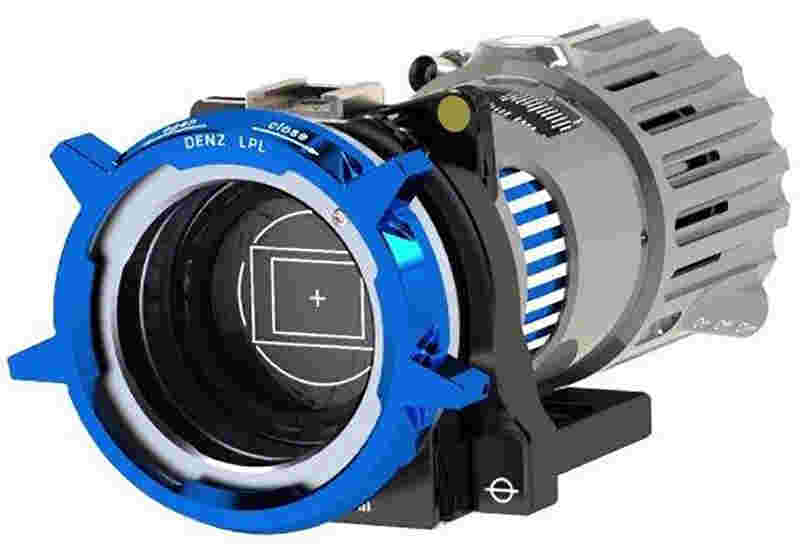

DENZ PLC MK II - a portable companion on location or with clients.  This ultra-light and compact test projector allows for quick and easy confirmation of flange depth shimming as well as evaluation of optical performance.  Base models are available with PL, LPL and E-mount as basic mounts, which can be used with suitable adapters.  With its feature set and adjustable flange depth, the PLC is unmatched regarding price/performance.

Features

•    Robust mechanical reticle drive, low-maintenance, high thermic stability
•    Total travel range of reticle: 1,5mm
•    Reticle position scaling: 10 microns per tick mark
•    Formats (small to large)
     2/3 "HD
     Super-16
     MFT
     S35 + Anamorphic
     Alexa 16: 9
    APS-C
    Alexa 35 Open Gate
    RED Helium 8K
    RED Weapon 8K
    Alexa LF 16x9
    Alexa LF 2.39
    Vista Vision
    Full Frame 36x24
    RED Weapon 8K (Monstro)

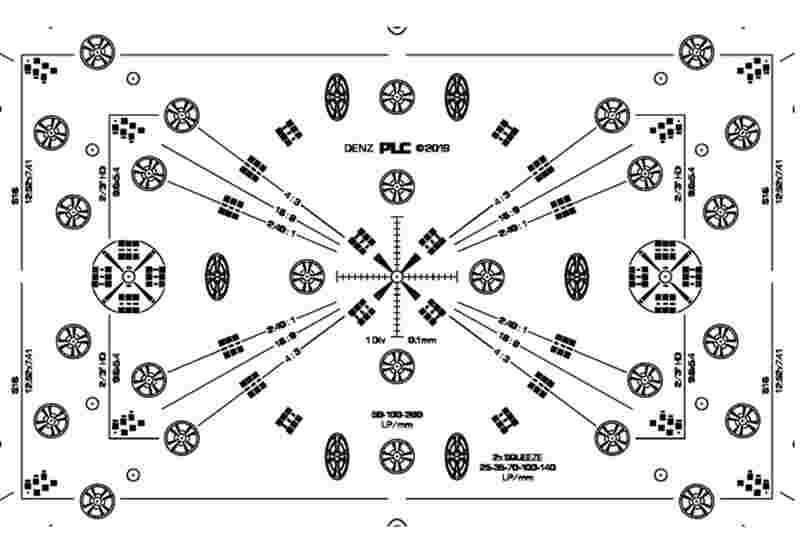

•    Resolution and geometry symbols:
     Line pair blocks 50/100/200 lp/mm
     Siemens Stars 50/100/200 lp/mm
     Anamorphic Siemens stars 2: 1: 25/35/70/100/140
     anamorphic ellipse targets: 2: 1 / 1,8: 1 / 1,65: 1 / 1,33: 1
•    LED optimized for even field illumination
•    Coverage up to full frame 35mm; no lamp change necessary
•    Intensity up to 4200lm
•    5000°K color temperature
•    Thermic stability: active cooling allows for constant use at highest illumination level, the light element is continuously cooled
•    Automatic shut-down if overheating occurs
•    Dimmable in 3 steps:  25%, 50%, 100%


Any questions?
Tel: +49 89 629866-0

Components

Item number

Description

Single price

C0100005

PLC PL – Portable Lens Checker for PL-lenses – Mark II

€ 6350.00

C0100008

PLC LPL – Portable Lens Checker for LPL-lenses – Mark II

€ 6350.00

C0100032

PLC E – Portable Lens Checker for Sony E-lenses – Mark II

€ 6350.00

C0100015

PLC/MFC – Calibrating Set

€ 1235.00

C0100037

Universal-Support "David"

€ 360.00

C0100058

PLC – Handle

€ 268.00

C0100271

Tandem Bracket for Ø15mm to Ø19mm Bars

€ 140.00



Application film
