MFC 65 - Medium Format Projector

C0100001

The DENZ MFC65 is a highest-end LED-based test projector for industrial and rental-house use, intended for operations who need to assure the highest quality.  The MFC65 was designed from the ground up for projection with lenses having up to 60mm image circle.  Issues such as shimming and decentering can be identified quickly and clearly so that customers can be served reliably.

Lens Mount System
Adaptation to all lens mounts enabled by the short MFC65 basic flange depth of 10mm.

Current lens mount adapter program includes:

  • Standard-PL,
  • ARRI LPL standard
  • ARRI LPL with rotation capability for critical analysis
  • ARRI XPL 60,
  • Sony E
  • Canon EF
  • Panavision
  • Camera front intermediate mounts for ARRI Amira/Alexa Mini, RED DSMC


The Denz-Chart 65 reticleAbdeckung aller gängigen Formate
Anamorphic symbols ratio 2:1 to 1.33:1
Alexa 65, PV, VistaVision/DXL, Full Frame 35, Red Helium, Arri Alexa, Alexa LF, Super-35, MFT, S16 und HD 2/3"
Symbols with 50/100/200lp/mm
Different image circle

Motorized adjustmentof flange depth
Accuracy of +/- 1 micron with a total range of over 4mm, repeated re-zeroing is not necessary.

Integrated Measuring System
Guides and encoders of the highest accuracy are used to eliminate sine error.

High-Power COB-LED light panel
Extremely even illumination field with 20000 lm and 5000°K color temperature.
Optimal conditions for inspection of all large image circles, with high contrast even at longer distances.  The lamp intensity can be continuously dimmed.

Wireless Remote Control
Touch screen control on projector as well as on WiFi-Tablet.

Automated measuring process
Wireless control of lens motors with simultaneous read of actual lens ring positions via the gooseneck camera.
Inspection can be performed while standing directly at the projection surface.


Attention: right now the DENZ MFC 65 lens testing projector is only available on request !

Any questions?
Tel: +49 89 629866-0

Components

Item number

Description

Single price

C0100001

MFC 65

tba

C0100029

Remote WiFi incl. Tablett 7″ – video stream – ready

tba



AndoidApp to remote control flange focal length

tba

C0100035

Anti-Sag Support 19mm MFC 65 Heavy Lens

tba

C0100011

Lens Support Bridge for Ø19mm rods

€ 440.00

C0100074

Gooseneck Webcam incl. cable (Lemo)

tba

C0100033

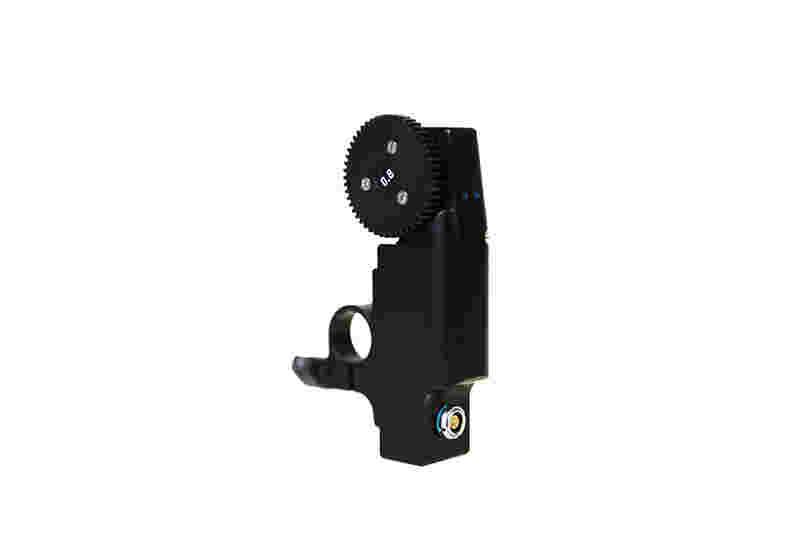

lens control motor – self calibrating, m0.8, for 15/19 rods

tba

C0100247

cable for lens control (lemo/lemo)

tba

tba

DENZ Chart 65 in precision mount

tba

tba

Reticle DENZ Chart 65 in precision mount

tba

C0100244

DENZ mounting tool for MFC65 chart

tba

C0100158

Adapter PL

tba

C0100159

Adapter XPL-60

tba

C0100248

Adapter Sony-E

tba

C0100030

Adapter Canon EF

tba

C0100025

Adapter LPL Standard

tba

C0100056

Adapter LPL Rotating

tba



Adapter LPL LDS

tba



Adapter PL LDS

tba

C0100039

intermediate adapter from DENZ Basic Mount to ARRI Amira and Alexa Mini

tba

C0100246

intermediate adapter from DENZ Basic Mount to RED DSMC

tba

C0100084

Optical Flat Ø45 x 3

tba

C0100048

Optical Flat Ø72 x 3

tba



Application film
