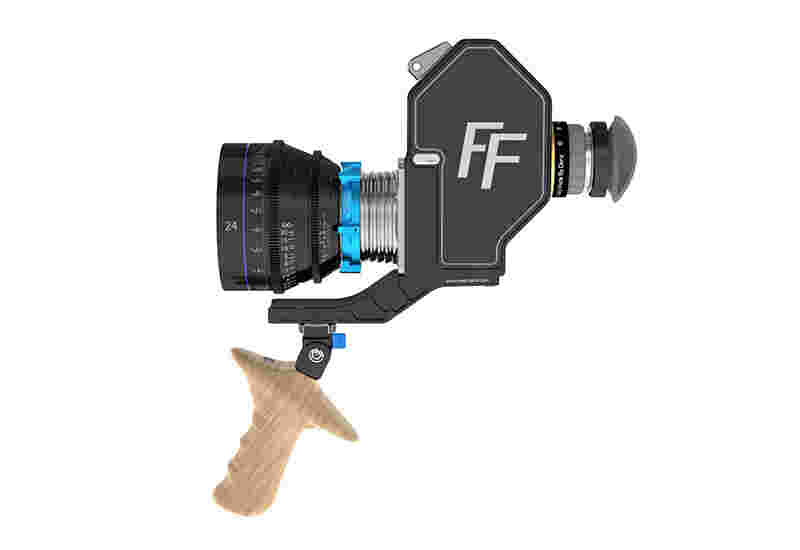

OIC FF Director's Viewfinder

C0100002

A native image is always closer to reality than a digital image. The DENZ OIC FF is the first choice on set or location, where an optical viewfinder for full frame is concerned. The OIC FF is switchable from spherical to anamorphic with de-squeeze factors of 1.3, 1.5, 1.8 and 2.0 available and others upon request.

Coverage of Full Frame
Swappable mount program includes PL, LPL and SP70
Eyepiece with +/- 4 dpt adjustment
New DENZ ground glasses - robust and acetone-proof
Ergonomic universal handgrip, made of cherrywood, with DENZ Soft-Touch coating and quick-adjustment locking rosettes
Special bracket made of AW7075 aluminum for optimal balance with larger lenses; three mounting points for handgrip
1/4"-20 thread on bottom of handgrip for monopod use

Any questions?
Tel: +49 89 629866-0

Components

Item number

Description

Single price

C0100002

Director’s Viewfinder OIC FF – Complete Anamorphic Solution
incl. ocular, wooden handle, support bracket, shoulder strap, clamping tool

incl. 1x  less-mount up to your choice (PL, LPL OR PV SP70)
incl. 1x  equalization modules up to your choice (2.0, 1.8, 1.5 OR 1.3)incl. 1x ground glass up to your choice (LF 16:9 and 2.39:1 OR LF Open Gate)

16.296,00 €

C0100019DENZ
LF Open Gate 36.7x25.54
Compatible with OIC Full Frame Director's Viewfinder

C0100020DENZ
LF 16x9 and LF 31.68x17.82 and LF 36.7x15.31 2.39:1 aspect ratio
Compatible with OIC Full Frame Director's Viewfinder

C0100262DENZ
Alexa LF Open Gate 36.7x18.35 2:1 aspect ratio
Compatible with OIC Full Frame Director's Viewfinder

C0100267DENZ
Venice 35.9x17.95 2:1 aspect ratio
Compatible with OIC Full Frame Director's Viewfinder

C0100329DENZ
Venice 31.73x23.9 and Alexa LF 33.91x25.54 2.39:1 aspect ratio with Anamorphic Squeeze 1.8:1 Final
Compatible with OIC Full Frame Director's Viewfinder

C0100332DENZ
Venice 35.9x22.53 and Alexa LF36.7x23.03 2.39 aspect ratio with Anamorphic Squeeze 1.5:1 Final
Compatible with OIC Full Frame Director's Viewfinder

C0100333DENZ
LF Open Gate 36.7x25.54 and Open Gate 24.27x24.27 with Anamorphic Squeeze 2:1
Compatible with OIC Full Frame Director's Viewfinder

C0100335DENZ
LF Open Gate 30.58x25.54 2.39:1 aspect ratio with Anamorphic Squeeze 2:1 Final
Compatible with OIC Full Frame Director's Viewfinder

C0100336DENZ
Alexa LF Open Gate 2.39:1 and 2.00:1 aspect ratio with Anamorphic Squeeze 1.8:1
Compatible with OIC Full Frame Director's Viewfinder

C0100337DENZ
Alexa LF Open Gate 2.00:1 aspect ratio with Anamorphic Squeeze 1.5:1
Compatible with OIC Full Frame Director's Viewfinder

C0100338DENZ
Super 35 2.39:1 aspect ratio with Anamorphic Squeeze 1.8:1
Compatible with OIC Full Frame Director's Viewfinder

C0100339DENZ
Super 35 2.39:1 aspect ratio with Anamorphic Squeeze 2:1
Compatible with OIC Full Frame Director's Viewfinder

C0100340DENZ
Alexa LF Open Gate
Compatible with OIC Full Frame Director's Viewfinder

C0100341DENZ
Alexa LF Open Gate 2.39:1 aspect ratio for Spherical Lens
Compatible with OIC Full Frame Director's Viewfinder

C0100344DENZ
Alexa LF Open Gate 2.39:1 aspect ratio with Anamorphic Squeeze 1.8:1
Compatible with OIC Full Frame Director's Viewfinder

C0100351DENZ
Alexa LF Open Gate 2.20:1 aspect ratio with Anamorphic Squeeze 2:1
Compatible with OIC Full Frame Director's Viewfinder

C0501122DENZ
Alexa 35 2:1 aspect ratio with Anaphormic Squeeze 2:1
Compatible with OIC Full Frame Director's Viewfinder

C0501123DENZ
Alexa 35 2:1 aspect ratio for Spherical Lens
Compatible with OIC Full Frame Director's Viewfinder

tbaOIC FF Video Assist - Nachrüstkit inkl. Montage Price on Request
