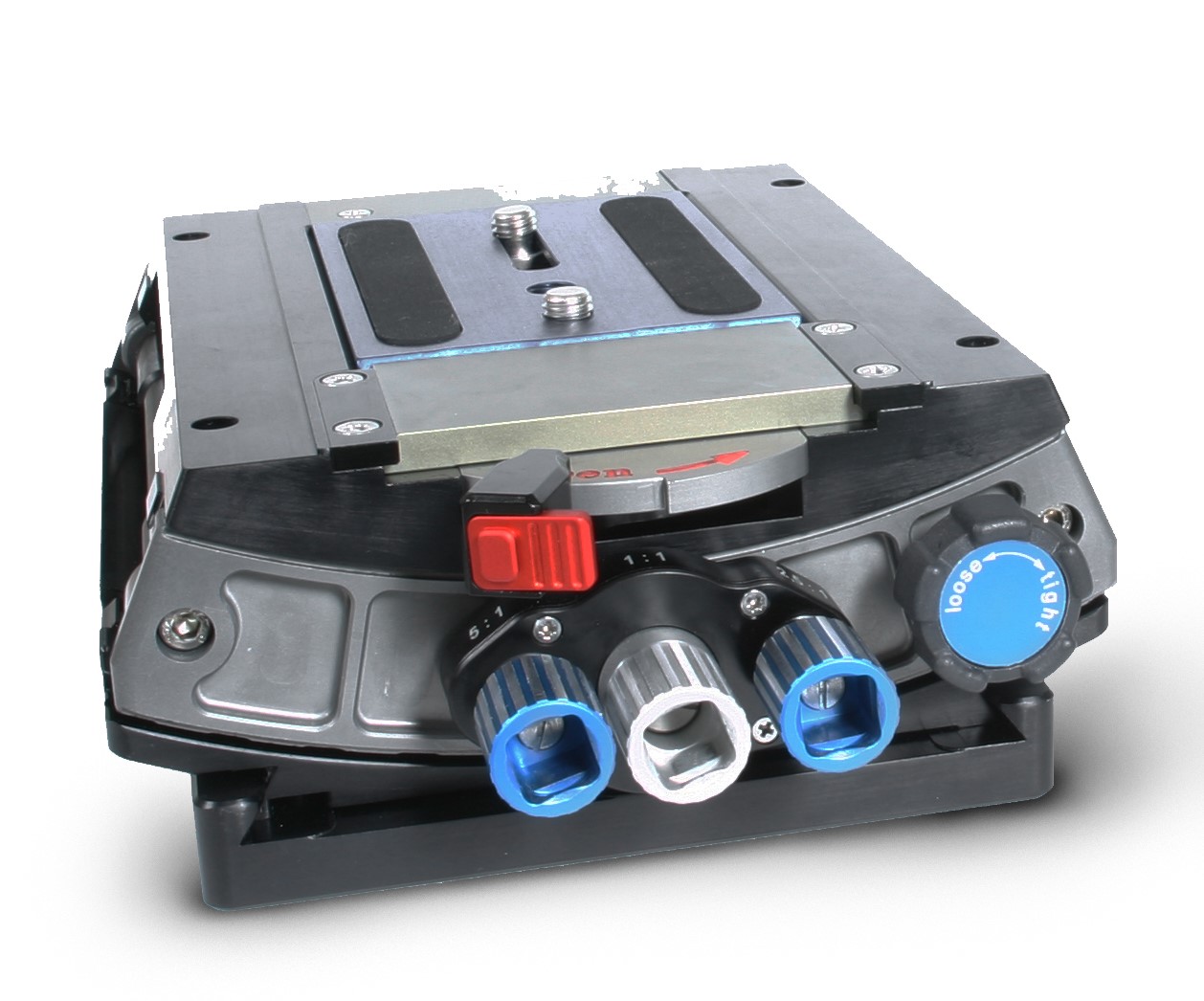

DENZ Bogie

C0100308

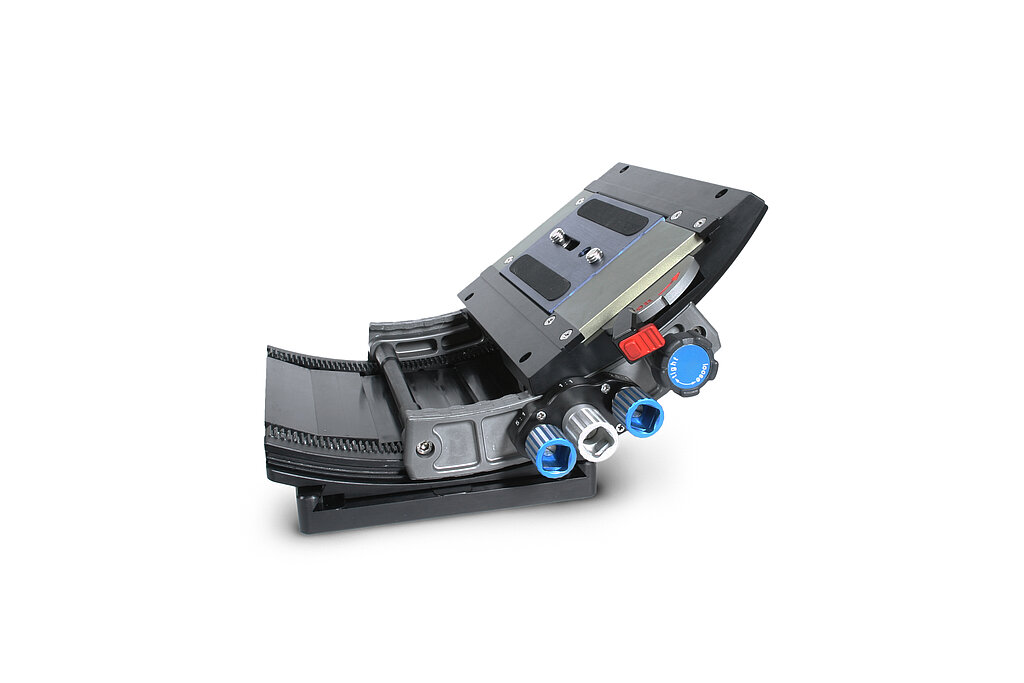

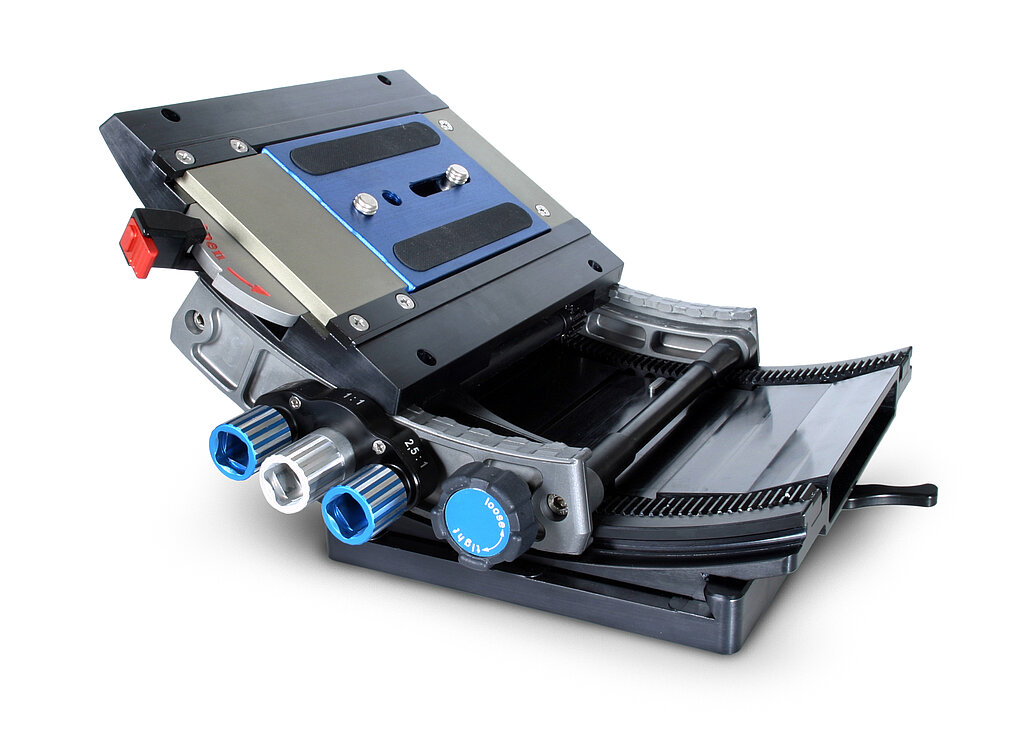

The BOGIE can roll digital and analog cameras around their optical axis by 70°, while keeping the rotational center on the optical axis. (The camera has to have standard height, by using an appropriate camera support.)

There are 3 different speeds:

1,0  :  1    standard speed

2,5  :  1    average speed

5,0  :  1    special speed (slowly)

Guide surfaces coated with extra-hard teflon-impregnated ceramic Roll-angle range +/- 35° (total 70°) about optical axis.  Dimensions LxWxH: 190x170x80 (mm), 7.41 x 6.63 x 3.2 (inch) - Weight: 3 kg / 6.67 lb. Load capacity: 10 kg

Any questions?
Tel: +49 89 629866-0

Components

Item number

Description

Single price

C0100308

DENZ Bogie

€ 5280.00

C0100220

Flexible Shaft – 300mm

€ 85.00
